demo_partsERP
Demo subproject of partsERP Enterprise Resource Planning system featuring the core product functionality.
This web app uses Python with Flask for the server and MySQL for the database.
Build And Run
NOTE: ALL INSTRUCTIONS ARE FOR LINUX.
0. Prerequisites
- Python 3.10
- npm
- Locally hosted MySQL database
- Auth0 application for project
- (Optional) Google ReCAPTCHA public and secret keys
- (Optional) Bot email account
1. Create and populate database
1.1. Sign into your local MySQL workspace
1.2. Run script static/MySQL/0000_combined.sql
2. Open the project in a new terminal window
2.1. Open a new terminal window
2.2. Navigate to the project with the following command
- cd path/to/project/main/directory
3. Create virtual environment
3.1. Terminal command
- python3 -m venv env_demo_partsERP
4. Enter virtual environment
4.1. Terminal command
- source env_demo_partsERP/bin/activate
5. Run module bundler
5.1. Terminal command
- npm run build
6. Install required python packages
6.1. Terminal command
- pip3 install -r requirements.txt
7. Set required environment variables
7.1. Terminal command
- export variable_name=variable_value
7.2. Required variables
| Name | Purpose | Example Value |
|---|---|---|
| KEY_SECRET_FLASK | Private key for server encryption. | password123 |
| ID_AUTH0_CLIENT | Public identifier for project's Auth0 application. | erDasdku8asdncuS... |
| ID_AUTH0_CLIENT_SECRET | Private key for project's Auth0 application. | erDasdku8asdncuSAAS88... |
| DOMAIN_AUTH0 | Domain for requests related to project's Auth0 application. | dev-pdjf9043dsau7fas8fs.us.auth0.com |
| SQLALCHEMY_DATABASE_URI | Database connection string for SQLAlchemy. | mysql://db_user_name:db_password@127.0.0.1:3306/db_name |
| URL_HOST | Domain (and port as necessary) that the project is hosted on. | https://127.0.0.1:5000/ |
7.3. Optional variables
| Name | Purpose | Example Value |
|---|---|---|
| MAIL_DEFAULT_SENDER | Bot email address. Required for sending internal emails following form completion on Contact Us page. | bot@partsltd.co.uk |
| MAIL_CONTACT_PUBLIC | Company's public communications email address. Required for receiving internal emails following form completion on Contact Us page. | teddy@partltd.co.uk |
| MAIL_PASSWORD | Password for bot email account. Required for receiving internal emails following form completion on Contact Us page. | password123 |
| RECAPTCHA_PUBLIC_KEY | Public key for Google reCAPTCHA. Required for bot-prevention mesaures on Contact Us page form. | erDasdku8asdncuSAAS88... |
| RECAPTCHA_PRIVATE_KEY | Private key for Google reCAPTCHA. Required for bot-prevention mesaures on Contact Us page form. | erDasdku8asdncuSAAS8... |
8. Host project
NOTE: DO EITHER 8.1 OR 8.2.
8.1. Host for local machine
- python3 -m flask run
8.2. Host for local network
- python3 -m flask run --host=0.0.0.0
File Structure
Files dedicated to each page
CSS:
- page
HTML:
- page
- row
JavaScript:
- page
- api
- router
- base - navigation buttons
MySQL:
- get
- save
- table
- staging table
- audit table
Python:
- business object
- controller
- datastore
- form
- model
Link
Live demo site
https://erp.sandbox.partsenterprise.partsltd.co.uk/
Credentials portal for live demo site
https://auth.sandbox.teddy.org.uk/?target=https%3A%2F%2Ferp.sandbox.partsenterprise.partsltd.co.uk
Gallery
Product Category page

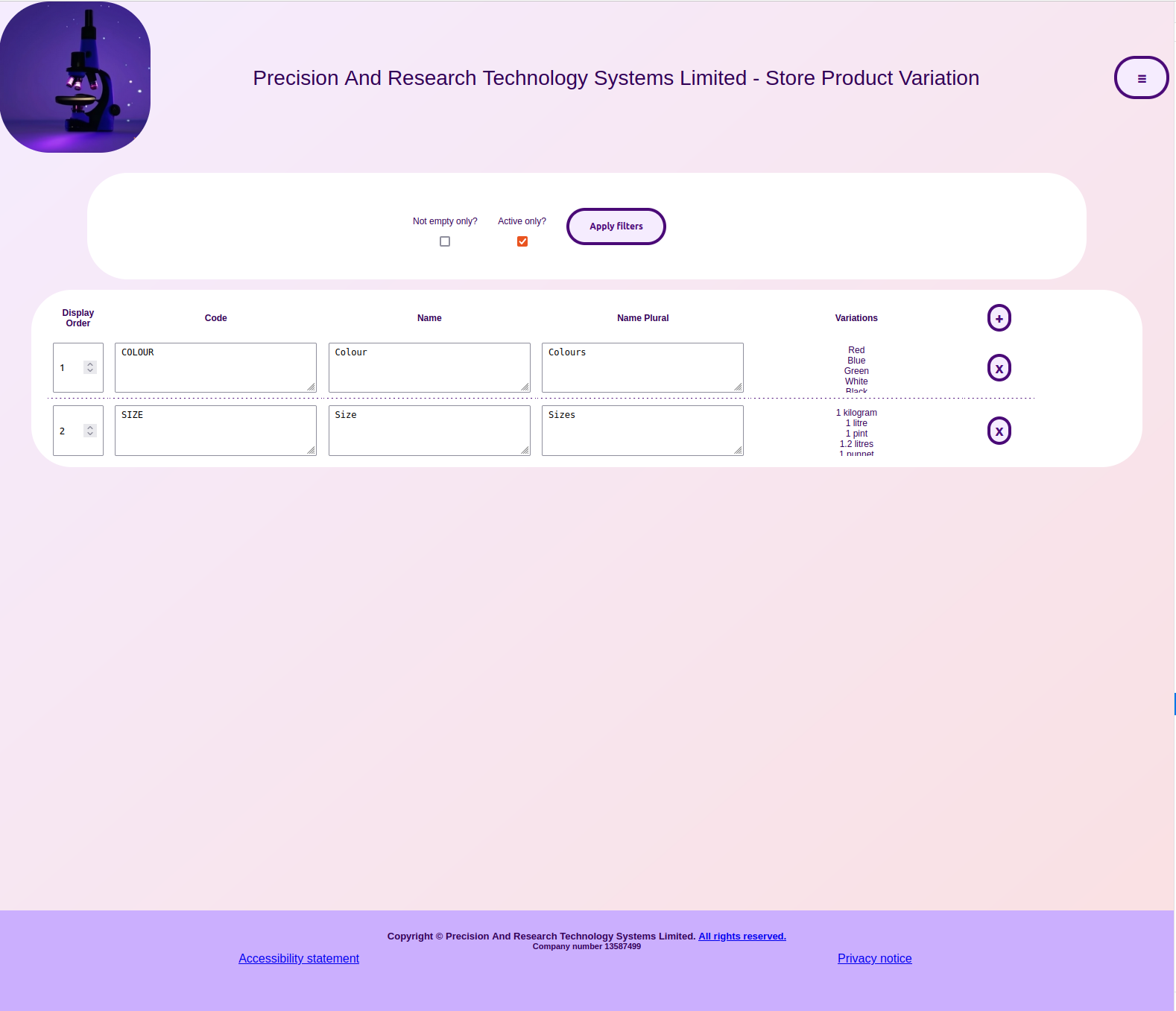

Product Variation page
License
This project is licensed under the GNU General Public License v3.0 - see the LICENSE file for details
